Ultra Edge–Sign System (UE-Sign)

Ultra Edge Sign System is engineered to provide premium framing for architectural wayfinding and interior decor applications. Its advanced technology allows users to design custom illuminated and non-illuminated signs for various setups, including wall-mounted, projected, suspended, and freestanding navigational signs. The system ensures a consistent aesthetic throughout a building, seamlessly aligning branding with interior decor.

UE-Sign10 combines simplicity, strength, and an elegant, understated design. Its sleek 2 mm visible edge delivers a refined, modern aesthetic. Graphics and panels can be seamlessly inserted and mounted without visible fixtures. The system also supports customizable surface illumination using an LGP sheet.

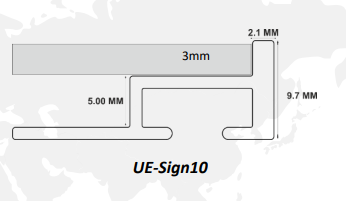

UE-Sign10

UE-Sign10 offers an ideal solution for edge-to-edge graphic displays. It supports custom-sized framing with concealed fixing elements for a seamless look. This lightweight frame system is perfect for large-format displays, such as building/office guidelines, policies, do’s and don’ts, fire safety signs, and more.

Features and Applications:
Model: : UE-SS2010
Material : AL6063
Surface : Anodized up to 25 micron
Depth : 9.7mm
Length : 8 feet
Display : Acrylic, ACP and Sun board Graphic insert up
to 3mm.
Installation : Hidden Screws, Double sided tape
Suspension Clips with steel wires
Application : Lit & non-lit Wall Mounted, Suspended,
Projected and Table Stand display

UE-Sign25

UE-Sign25 provides double-sided sign applications with a 25mm depth, delivering a striking yet elegant design. Its 2mm visible edge imparts a sleek, modern aesthetic to wayfinding displays and other uses. The system supports both single- and double-sided illuminated and non-illuminated wayfinding sign applications.

Features and Applications:
Model: : UE-DS2025
Material : AL6063
Surface : Anodized up to 25 micron
Depth : 25mm
Length : 8 feet
Display : Acrylic, ACP and Sun board
Graphic insert up to 4mm.
Installation : Hidden Screws, Double sided
tape, Suspension Clips with steel wires
Application : Single and Double Sided Projected and
Suspended Sign

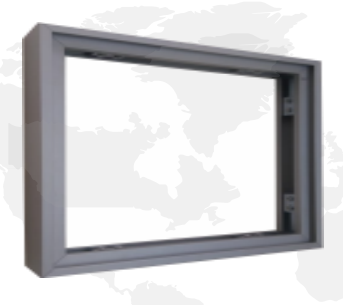

UE-Sign25 is a versatile double-sided display system designed for a wide range of indoor wayfinding and navigation signs. Its frame is constructed with mitre-cut profiles, reinforced by robust zinc-plated MS corners, ensuring durability for large-scale frames. The system includes tailored profiles and accessories for assembling various sign types, such as wall-mounted, suspended, and projected signs. The frame supports graphic sheets up to 4mm thick, secured with double-sided tape.

UE-Sign50

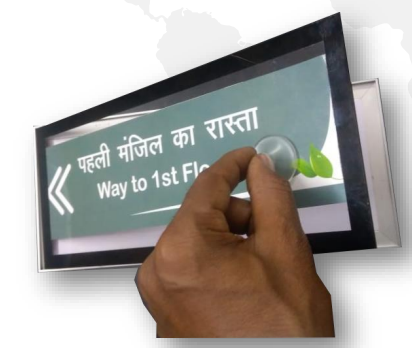

UE-Sign50 provides double-sided sign applications with a 50mm depth and a sliding mechanism for graphic sheets up to 5mm thick, delivering an elegant and refined design. The 8mm front collar enhances its sleek, modern aesthetic for wayfinding displays and other applications, while ensuring easy maintenance. The system supports both illuminated and non-illuminated wayfinding sign applications.

Features and Applications:
Model: : UE-DS2050
Material : AL6063
Surface : Anodized up to 25 micron
Depth : 50mm
Length : 12 feet
Display : Acrylic, ACP and Sun board Graphic
insert up to 5mm.
Installation : Hidden Screws,
Suspension Clips with steel wires
Application : Double Sided Projected, Suspended
and Free Standing Sign

UE-Sign50 is a versatile double-sided display system designed for a wide range of indoor and outdoor wayfinding and navigation signs. Its frame is constructed with mitre-cut profiles, reinforced by sturdy zinc-plated MS corners, ensuring durability for large-scale frames. The system includes tailored profiles and accessories for assembling various sign types, such as wall-mounted, suspended, and projected signs and displays. The frame supports graphic sheets up to 5mm thick, with easy maintenance.

Wall Mounted Statutory Sign 200 x 200mm, sign construction with UE-Sign10 and 3mm Foam Board Graphic insert .

Wall Mounted Safety Sign 300 x 300mm, sign construction with UE-Sign10 and 3mm Acrylic Graphic insert

Wall Mounted General Sign 80 x 300mm, sign construction with UE-Sign10 and 3mm Acrylic Graphic insert .

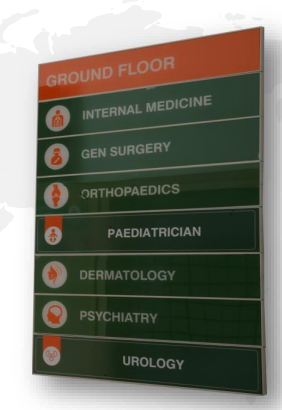

Wall Mounted Directory Sign 500 x 750mm, sign construction with UE-Sign10 and 3mm Acrylic Graphic insert

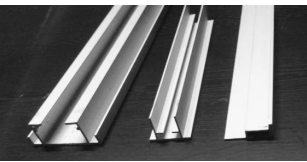

Magnet can be fix into the grooved profile and support a selection of replaceable inserts. Due to the system’s frame structure design, UE-Sign10 creates very lightweight signs – a significant benefit for Wall mounted signs.

Non-Illuminated Projected Sign 150 x300mm fabricated with UE-Sign25 and associated profile. Options of graphics can be foam board, ACP or Acrylic up to 4mm

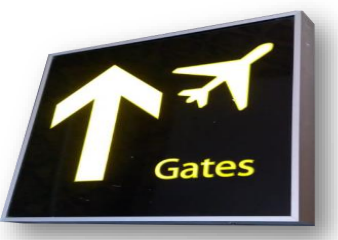

Illuminated Projected Sign 300 x 450mm assembled with UE-Sign25, the perfect choice for customized single or double-sided application. The system supports edge lit illumination by LED Modules or LGP seat.

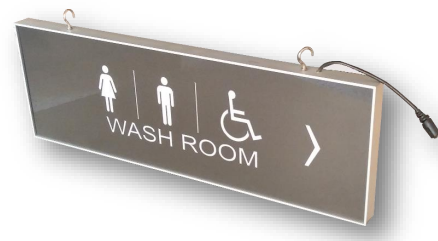

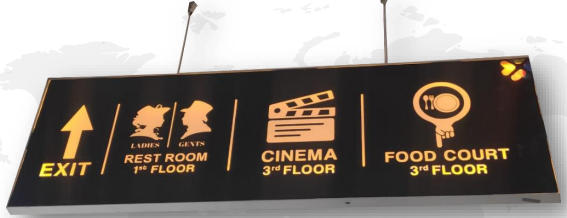

Illuminated Suspended Sign 300 x 1200mm, UE-Sign25 is the perfect choice for customized single or double-sided illuminated Suspended signs.

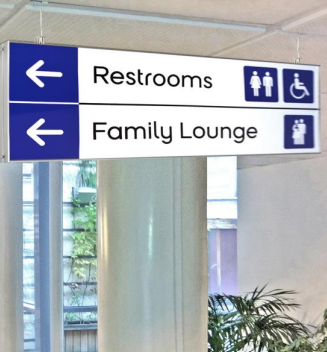

Illuminated Projected/Suspended Signs. UE-Sign50, the Slider Box profile is ideal for customized single or double-sided illuminated projected/Suspended signs. The system supports edge lit illumination by LED Modules and LED Tubes.
